Stainless Steel Anchors

 Galvanized Anchors Check Out

Stainless Steel anchors are both beautiful and long-lasting.

Unlike galvanizing, which is a coating that will eventually wear off, allowing the anchor to rust, our stainless anchors are 100% solid stainless steel.

All Blue Star and KEFA stainless steel anchors sold by Azure Marine use "316" stainless steel, which is more resistant to rust than the less expensive "304" grade.

Claw Anchors (just below) Folding Anchors Plow Anchors Wing Anchors

"Claw" Anchors are an excellent design, patterned on the "Bruce" anchor designed for North Sea use. They respond well to changes in current and wind, set and reset well, and work well in bow rollers.

Always use your judgement and experience making your final choice.  Many factors can influence anchoring in real world situations.  These charts are guides only.

(All measurements approximate; prices subject to change; errors subject to correction)
Item
(Click for more info)		 Description Boat Lengths Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D E

  Blue Star Stainless Steel 5.5 pound claw anchor  0 feet -
10 feet		 5.5 lbs. /
2.5 kg 		 $95.00
Qty:
 0lbs N/A  14 1/4"  7 1/4"   3/8"  9 1/2"  7 1/4"
  Blue Star Stainless Steel 10 pound claw anchor  19 feet -
23 feet		 10 lbs. /
4.5 kg 		 $173.00
Qty:
 0lbs  1/4"  18"  7 1/2"   5/8"  12"  9 1/2"
  Blue Star Stainless Steel 17 pound claw anchor  22 feet -
30 feet		 17 lbs. /
7.7 kg 		 $270.00
Qty:
 0lbs  5/16"  N/A  N/A  N/A  N/A  N/A
  Manson Ray stainless steel 22 pound Ray anchor  29 feet -
34 feet		 22 lbs. /
10 kg 		 $1220
Qty:
 0lbs N/A  22 1/2"  12 1/2"  N/A  15 1/4"  N/A
  Blue Star Stainless Steel 22 pound claw anchor  29 feet -
35 feet		 22 lbs. /
10 kg 		 $355.00
Qty:
 0lbs  5/16"  N/A  N/A  N/A  N/A  N/A
  Manson Ray stainless steel 33 pound Ray anchor  33 feet -
41 feet		 33 lbs. /
15 kg 		 $1831
Qty:
 0lbs N/A  26 3/4"  15"  N/A  17 1/2"  N/A
  Blue Star Stainless Steel 33 pound claw anchor  34 feet -
40 feet		 33 lbs. /
15 kg 		 $760.00
Qty:
 0lbs  3/8"  N/A  N/A  N/A  N/A  N/A
  Manson Ray stainless steel 44 pound Ray anchor  40 feet -
49 feet		 44 lbs. /
20 kg 		 $2443
Qty:
 0lbs N/A  28"  15 3/4"  N/A  18 1/4"  N/A
  Manson Ray stainless steel 55 pound Ray anchor  48 feet -
56 feet		 55 lbs. /
25 kg 		 $3054
Qty:
 0lbs N/A  28"  15 3/4"  N/A  18 1/4"  N/A
  Blue Star Stainless Steel 66 pound claw anchor  46 feet -
63 feet		 66 lbs. /
30 kg 		 $1139.00
Qty:
 0lbs  3/8"  N/A  N/A  N/A  N/A  N/A
  Manson Ray stainless steel 66 pound Ray anchor  55 feet -
63 feet		 66 lbs. /
30 kg 		 $3666
Qty:
 0lbs N/A  32 1/4"  18"  N/A  21 1/4"  N/A
  Manson Ray stainless steel 77 pound Ray anchor  62 feet -
71 feet		 77 lbs. /
35 kg 		 $4278
Qty:
 0lbs N/A  32"  18"  N/A  21 1/4"  N/A
  Blue Star Stainless Steel 110 pound claw anchor  62 feet -
92 feet		 110 lbs. /
50 kg 		 $1921.00
Qty:
 0lbs N/A  N/A  N/A  N/A  N/A  N/A


Folding Anchors are great easy-to-store anchors for hand deployment.

(All measurements approximate; prices subject to change; errors subject to correction)
Item
(Click for more info)		 Description Boat Lengths Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D E

  Blue Star 3 pound stainless steel folding anchor  0 feet -
8 feet		 3 lbs. /
1.3 kg 		 $99
Qty:
 0lbs N/A  N/A  N/A  N/A  N/A  N/A
  Blue Star 5 pound stainless steel folding anchor  0 feet -
10 feet		 5 lbs. /
2.2 kg 		 $132
Qty:
 0lbs N/A  N/A  N/A  N/A  N/A  N/A
  Blue Star 9 pound stainless steel folding anchor  8 feet -
16 feet		 9 lbs. /
4 kg 		 $178
Qty:
 0lbs N/A  N/A  N/A  N/A  N/A  N/A
  Blue Star 13 pound stainless steel folding anchor  10 feet -
18 feet		 13 lbs. /
5.9 kg 		 $227
Qty:
 0lbs N/A  N/A  N/A  N/A  N/A  N/A


"Plow" Anchors are a versatile and popular style, similar to the "CQR" anchor.  They offer very good holding power and an excellent response to changes in wind/current.  A weighted toe helps them penetrate the seabed.  Plow anchors are usually better than fluke anchors in rocky or grassy bottoms.

Remember that the plow is on a pivot and on some boats may move when under way.


(Plow anchor dimensions)

(All measurements approximate; prices subject to change; errors subject to correction)
Item
(Click for more info)		 Description Boat Lengths Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D E

  Stainless Steel 10 pound plow anchor  0 feet -
16 feet		 10 lbs. /
4.5 kg 		 $180.00
Qty:
 0lbs  1/4"  N/A  N/A  N/A  N/A  N/A
  stainless steel 16.5 pound plow anchor  10 feet -
20 feet		 16.5 lbs. /
7.5 kg 		 $295.00
Qty:
 0lbs  5/16"  N/A  N/A  N/A  N/A  N/A
  stainless steel 20 pound plow anchor  12 feet -
24 feet		 20 lbs. /
9 kg 		 $300.00
Qty:
 0lbs  5/16"  10 1/2"  33 1/2"  18"  2"  26"
  stainless steel 27 pound plow anchor  19 feet -
35 feet		 26.5 lbs. /
12 kg 		 $445.00
Qty:
 0lbs  5/16"  11 1/2"  33 1/2"  17 1/2"  2"  25 1/2"
  stainless steel 33 pound plow anchor  26 feet -
42 feet		 33 lbs. /
15 kg 		 $527.00
Qty:
 0lbs  5/16"  11 1/2"  31 1/2"  14 1/2"  2 1/16"  23"
  stainless steel 44 pound plow anchor  35 feet -
52 feet		 44 lbs. /
20 kg 		 $812.00
Qty:
 0lbs  3/8"  12 1/2"  36"  15"  2 1/2"  24 1/2"
  stainless steel 60 pound plow anchor  46 feet -
63 feet		 59.5 lbs. /
27 kg 		 $1056.00
Qty:
 0lbs  3/8"  N/A  N/A  N/A  N/A  N/A
  stainless steel 75 pound plow anchor  53 feet -
71 feet		 75 lbs. /
34 kg 		 $1487.00
Qty:
 0lbs  3/8"  19"  48"  24"  2 7/8"  34"
  Blue Star stainless stel 110 pound plow anchor  66 feet -
84 feet		 110 lbs. /
50 kg 		 $2113.00
Qty:
 0lbs N/A  N/A  N/A  N/A  N/A  N/A
  Blue Star stainless steel 132 pound plow anchor  72 feet -
91 feet		 132 lbs. /
60 kg 		 $2597.00
Qty:
 0lbs N/A  N/A  N/A  N/A  N/A  N/A

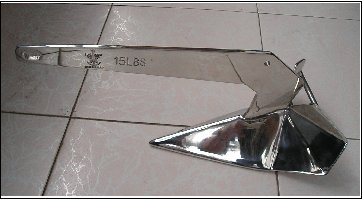

"Wing" Anchors are strong, deep setting anchors, with a weighted toe to help penetrate the seabed.  The flat surfaces make the stainless steel models really beautiful and the straight shank is compatible with a broad range of standard bow rollers.

(Some recent model Sea Rays come with "Delta" brand-specific bow rollers)

(Blue Star wing anchor dimensions)

(All measurements approximate; prices subject to change; errors subject to correction)
Item
(Click for more info)		 Description Boat Lengths Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D E

  Blue Star Stainless Steel 10 pound wing anchor  15 feet -
23 feet		 10 lbs. /
4.5 kg 		 $181.00
Qty:
 8100lbs  1/4"  8 1/4"  22"  8 5/8"  9 9/16"  2 3/16"

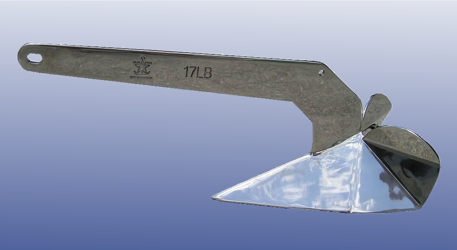

  Blue Star Stainless Steel 17 pound wing anchor  26 feet -
35 feet		 17 lbs. /
7.7 kg 		 $286.00
Qty:
 13200lbs  5/16"  9"  24 3/8"  9 5/8"  11 3/16"  2 9/16"
  Blue Star Stainless Steel 22 pound wing anchor  31 feet -
41 feet		 22 lbs. /
10 kg 		 $344.00
Qty:
 13200lbs  5/16"  10 3/8"  27 1/2"  11"  11 7/8"  2 15/16"
  Blue Star Stainless Steel 33 pound wing anchor  40 feet -
50 feet		 33 lbs. /
15 kg 		 $546.00
Qty:
 13200lbs  5/16"  11 3/8"  29 7/8"  12 3/16"  13 3/16"  3 1/8"
  Blue Star Stainless Steel 44 pound wing anchor  46 feet -
57 feet		 44 lbs. /
20 kg 		 $916.00
Qty:
 18500lbs  3/8"  12 3/4"  32 1/4"  13 3/8"  14 5/16"  3 1/2"
  Blue Star Stainless Steel 66 pound wing anchor  54 feet -
66 feet		 66 lbs. /
30 kg 		 $1343.00
Qty:
 18500lbs  3/8"  14 9/16"  38 9/16"  15 5/16"  17 3/16"  3 7/8"
  Blue Star brand 88 pound stainless wing anchor  60 feet -
77 feet		 88 lbs. /
40 kg 		 $1888.00
Qty:
 0lbs  3/8"  16"  45"  19 1/2"  19 3/4"  4"
  Blue Star brand 110 pound stainless wing anchor  65 feet -
77 feet		 110 lbs. /
50 kg 		 $2567.00
Qty:
 0lbs N/A  N/A  N/A  N/A  N/A  N/A
