The Manson Supreme

  Check Out
Unique Attributes of the Supreme
Immediate Set: The combination of the Spear Head and the wing tips combine to make this anchor set immediately in all ground types. Typically it will be load bearing in only the length of the anchor itself. The sharpened point on the spearhead means it will cut through weed, normally the most difficult seabed type to anchor in.

Super High Holding Power: Because the Supreme uses a roll bar to self right instead of a heavily leaded tip, weight can be distributed into the loadbearing fluke of the anchor. This increased surface area equates to a much higher holding power. The anchor is currently being surveyed by Lloyds Register of Shipping and will be certified as a Super High Holding Power Anchor, the first production anchor in the world to receive this status & certification.

Dual Shank Anchoring: The twin slots on the anchor shank enable use in all seabed types. When anchoring in rocky or coral situations, switching the anchor rode onto the rockslot means that if the anchor becomes lodged or jammed, the shackle can slide to the front of the anchor and simply lift forward. This removes the necessity to use a tripline or to change anchors. A pictorial display is shown below.

Bow Roller Compatability: The anchor is made to fit with all standard bow roller fittings. It will also fully self launch from all bow rollers.

SUPREME READY FOR SETTING
WEIGHT LYING ON SIDE FLAP
WEIGHT ON SPEAR HEAD NOSE
PULL IN LINEAR DIRECTION.
_
SUPREME BEGINS TO DIG IN
ANCHOR BECOMING HORIZONTAL
LOAD STARTING ON ANCHOR
FLUKE BEGINNING TO BURY
_
SUPREME TAKES LOADING
ANCHOR FULLY HORIZONTAL
LOAD ON ANCHOR ALREADY 50%
FLUKE COMPLETELY TO BURIED
ANCHOR WILL CONTINUE TO BURY UNTIL LOAD FULL.

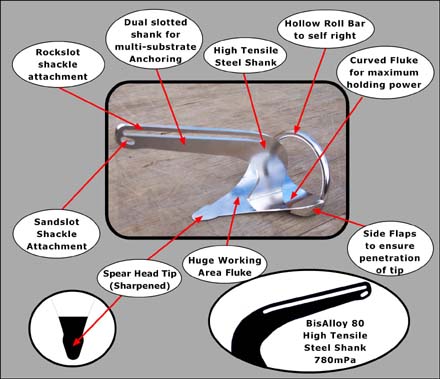

Features of a Manson Supreme



Construction aspects of the Supreme

Shank

  • Built from High Tensile Steel for extreme strength under load. Bisalloy 80 is 780mPa vs Mild Steel 260mPa. Stainless steel models use 2205 grade steel instead of 316L.  This means the shank is much more resistant to bending under load. The weight saving means more weight and hence more area in the fluke.
  • Dual Operation Shank. Shackle to the sandslot for anchoring in mud, sand and weed. Switch to the rockslot for anchoring in rocks or coral! The unique dual arrangement allows the shackle to move forward when the anchor snags and lift the anchor clear from entrapment. This removes the need to use trip lines which can tangle.

Fluke

  • Reinforced Laminated toe. Provides an extremely strong forward section of the anchor where the most loading is concentrated.
  • Sharpened Spear Head. This added feature ensures great penetration into the seabed. Especially significant in weed or kelp areas the spear cuts through to start the anchoring process. The spearhead also concentrates all the weight of the anchor onto a very small area encouraging the anchor to dig and set immediately.


(All measurements approximate; prices subject to change; errors subject to correction)

Item
(Click for more info)
Description Boat Lengths
(approximate)
Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D E F

  Manson 5 pound Supreme anchor (galvanized)  0 feet -
16 feet
5 lbs. /
2.2 kg
$91.00
Qty:
0lbs N/A  13 1/2"  5 1/2"  9 3/4"  8 3/4"  8 1/4"  N/A
  Manson 5 pound Supreme anchor (stainless steel)  0 feet -
16 feet
5 lbs. /
2.2 kg
$362.00
Qty:
0lbs N/A  13 1/2"  5 1/2"  9 3/4"  8 3/4"  8 1/4"  N/A
  Manson 10 pound Supreme anchor (galvanized)  10 feet -
20 feet
10 lbs. /
4.5 kg
$130.00
Qty:
0lbs N/A  17"  7"  12 1/4"  10 3/4"  10 1/4"  N/A
  Manson 10 pound Supreme anchor (stainless steel)  10 feet -
20 feet
10 lbs. /
4.5 kg
$489.00
Qty:
0lbs N/A  17"  7"  12 1/4"  10 3/4"  10 1/4"  N/A
  Manson 15 pound Supreme anchor (galvanized)  18 feet -
25 feet
15 lbs. /
6.8 kg
$174.00
Qty:
0lbs N/A  18 1/2"  7 3/4"  13 3/4"  12 1/4"  11"  N/A
  Manson 15 pound Supreme anchor (stainless steel)  18 feet -
25 feet
15 lbs. /
6.8 kg
$608.00
Qty:
0lbs N/A  18 1/2"  7 3/4"  13 3/4"  12 1/4"  11"  N/A
  Manson 25 pound Supreme anchor (galvanized)  25 feet -
35 feet
25 lbs. /
11.3 kg
$259.00
Qty:
0lbs N/A  21 3/4"  9 1/4"  16 1/4"  14 1/4"  13 3/4"  N/A
  Manson 25 pound Supreme anchor (stainless steel)  25 feet -
35 feet
25 lbs. /
11.3 kg
$998.00
Qty:
0lbs N/A  21 3/4"  9 1/4"  16 1/4"  14 1/4"  13 3/4"  N/A
  Manson 35 pound Supreme anchor (galvanized)  35 feet -
40 feet
35 lbs. /
15.9 kg
$365.00
Qty:
0lbs N/A  24 1/2"  10 1/2"  18 1/4"  16 1/4"  14"  N/A
  Manson 35 pound Supreme anchor (stainless steel)  35 feet -
40 feet
35 lbs. /
15.9 kg
$1372.00
Qty:
0lbs N/A  24 1/2"  10 1/2"  18 1/4"  16 1/4"  14"  N/A
  Manson 45 pound Supreme anchor (galvanized)  40 feet -
45 feet
45 lbs. /
20.4 kg
$461.00
Qty:
0lbs N/A  27"  11 1/2"  20 1/2"  18"  16 1/4"  N/A
  Manson 45 pound Supreme anchor (stainless steel)  40 feet -
45 feet
45 lbs. /
20.4 kg
$1798.00
Qty:
0lbs N/A  27"  11 1/2"  20 1/2"  18"  16 1/4"  N/A
  Manson 60 pound Supreme anchor (galvanized)  45 feet -
55 feet
60 lbs. /
27.2 kg
$632.00
Qty:
0lbs N/A  29 1/2"  12 1/2"  22 1/2"  18 3/4"  17 3/4"  N/A
  Manson 60 pound Supreme anchor (stainless steel)  45 feet -
55 feet
60 lbs. /
27.2 kg
$2399.00
Qty:
0lbs N/A  29 1/2"  12 1/2"  22 1/2"  18 3/4"  17 3/4"  N/A
  Manson 80 pound Supreme anchor (galvanized)  50 feet -
60 feet
80 lbs. /
36.3 kg
$816.00
Qty:
0lbs N/A  33 1/2"  14 1/4"  25 1/2"  22"  19 3/4"  N/A
  Manson 80 pound Supreme anchor (stainless steel)  50 feet -
60 feet
80 lbs. /
36.3 kg
$3201.00
Qty:
0lbs N/A  33 1/2"  14 1/4"  25 1/2"  22"  19 3/4"  N/A
  Manson 100 pound Supreme anchor (galvanized)  55 feet -
70 feet
100 lbs. /
45.4 kg
$1177.00
Qty:
0lbs N/A  35 1/2"  14 1/2"  26 1/2"  22"  21"  N/A
  Manson 100 pound Supreme anchor (stainless steel)  55 feet -
70 feet
100 lbs. /
45.4 kg
$3920.00
Qty:
0lbs N/A  35 1/2"  14 1/2"  26 1/2"  22"  21"  N/A
  Manson 125 pound Supreme anchor (galvanized)  65 feet -
75 feet
125 lbs. /
56.8 kg
$1473.00
Qty:
0lbs N/A  37 3/4"  15 3/4"  28 1/4"  24 1/2"  23 1/4"  N/A
